HI-8431PQM

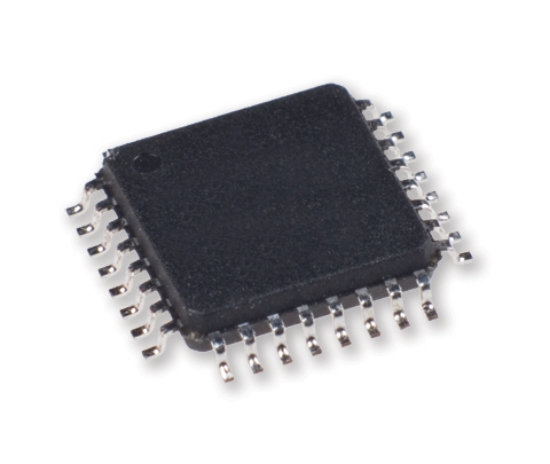

Picture of HI-8431PQM
Package Description:32 Pin Plastic Thin Quad Flat Pack (TQFP)
Temp Range:-55°C to +125°C
Flow:M
RoHS Compliant:No
Moisture Sensitivity Level:3
Theta JA (°C/W):41.41
Burn-In:Yes
Theta JB (°C/W):28.85
Theta JC (°C/W):N/A
Number of Channels:8
Product Longevity:> 10 Years
Sensing:Open / Ground (8 Channels) or 28V / Open (8 Channels)
The following quality & reliability information is available for part #HI-8431PQM
Reliability Monitor Data - Results by Package Type
HTOL Results by Process
TechnologyNumber of Units TestedEquivalent Device Hours at 55°CFailuresFIT(a)MTBF(b)
0.6um CMOS-SOI(c)4,4901.15E+0933.62.76E+08

Notes:

a. FIT is calculated based on 0.8ev, 60%C.L. and Y1 of 55°C

b. MTBF is calculated as MTBF = 10E+09/FIT Rate.

c. The FIT rate for this process is based on foundry process qualification data and ongoing reliability monitoring.



Reliability Monitor Data - Results by Process Technology
32PQS, 64PQS (TQFP)
Reliability TestNumber of Units TestedFailuresPercentage Failures / Total Units x 100Total Device Hrs / Cycles
High Accelerated Stress Test (HAST)2250021,600
Temperature Cycle (TC)45000450,000
Autoclave5050048,480
High Temperature Storage (HTS)45000450,000
Holt Incoming QA Plastic Monitor3640052,416
