HI-1592CST

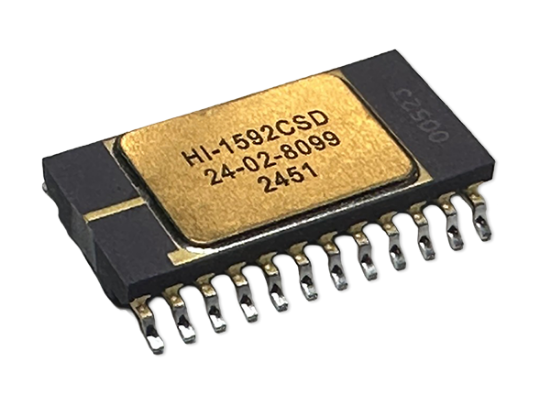

Picture of HI-1592CST
Package Description:24 Pin Ceramic SOIC - WB
Temp Range:-55°C to +125°C
Flow:T
RoHS Compliant:Yes
Product Longevity:> 10 Years
The following quality & reliability information is available for part #HI-1592CST
Reliability Monitor Data - Results by Package Type
HTOL Results by Process
TechnologyNumber of Units TestedEquivalent Device Hours at 55°CFailuresFIT(a)MTBF(b)
0.18um CMOS - SOI7771.13E+0808.11.23E+08

 Notes:

a. FIT is calculated based on 0.8ev, 60%C.L. and Y1 of 55°C

b. MTBF is calculated as MTBF = 10E+09/FIT Rate.

c. The FIT rate for this process is based on foundry process qualification data and ongoing reliability monitoring.



Downloads
Data Sheets
Demo Kit Quick Start Guide
STEP Files
