ADK-15691: HI-15691 Transceiver Demonstration Board

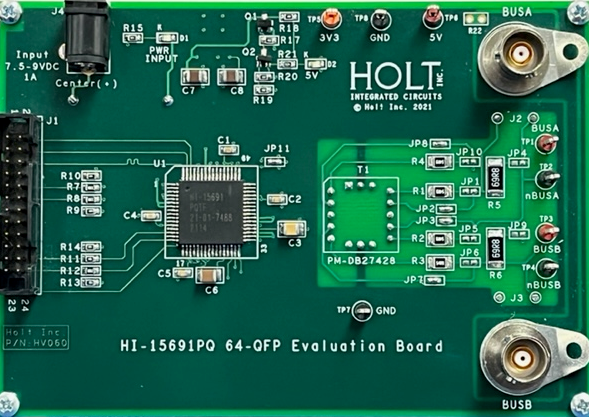

The HI-15691 Signal Break-Out Board has several options for configuring both MIL-STD-1553 bus interfaces.

• Direct-Coupled or Transformer-Coupled bus interface for normal 1553 bus connectivity. On-board termination resistors R5 and R6 must be open in this mode.
• An On-board resistive dummy bus load suitable for Transformer Coupled or off-board conventional bus connection.
• Optional ground connections for negative side of Buses A and B so that single conventional oscilloscope probes conveniently provide differential “Bus-Positive minus Bus-Negative” signal viewing.
