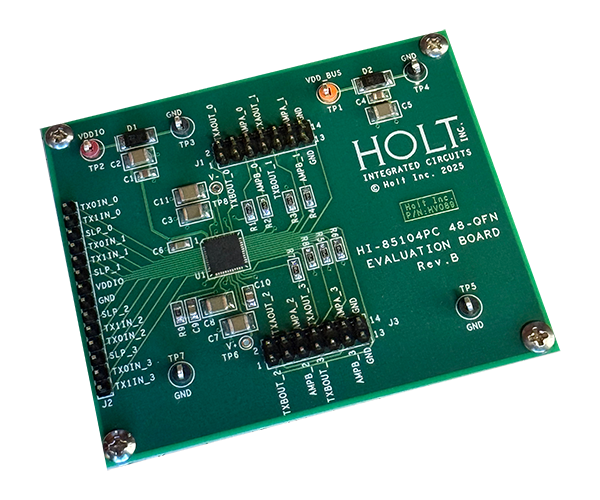

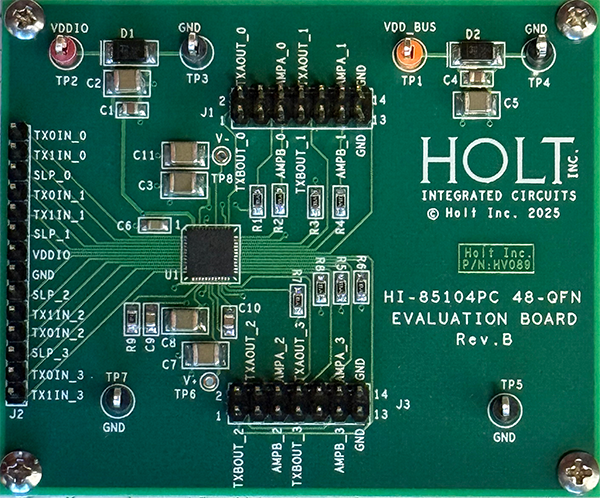

This board allows customers to evaluate the features of Holt’s HI‑85104, the world’s first fault‑isolated Quad ARINC 429 Line Driver.
The evaluation board is powered by a 3.3 V VDD supply and supports a digital input range of 1.8 V to 5.0 V, enabling direct interfacing with a wide variety of FPGAs and microcontrollers without additional level shifting.
The board demonstrates the HI‑85104’s advanced protection architecture. Each transmit channel includes internal short‑circuit protection, ensuring other channels continue operating normally even if an individual output is shorted to ground or another line. The device resumes normal transmission automatically when the fault is removed.
All logic inputs on the board support 4 kV ESD protection, and its convenient header layout makes it easy to connect digital ARINC‑429 sources and monitor ARINC outputs on an oscilloscope. Users can view all four channels simultaneously and verify proper operation at both high‑speed and low‑speed ARINC data rates.
