HI-6137

The 3.3V CMOS HI-6137 device provides a complete single- or multi-function interface between a host processor and MIL-STD-1553B bus. Each IC contains a Bus Controller (BC) and a Remote Terminal (RT). Any combination of the contained 1553 functions can be enabled for concurrent operation. The enabled terminals communicate with the MIL-STD-1553 buses through a shared on-chip dual bus transceiver and external transformers. The user allocates 16K bytes (8K x 17-bit words) of on-chip static RAM between devices to suit application requirements.

The HI-6137 communicates with the host via a 40 MHz 4-wire serial peripheral interface (SPI). Programmable interrupts provide terminal status to the host processor. Circular data buffers in RAM have interrupts for rollover and programmable “level attained”.

The HI-6137 can be configured for automatic self-initialization after reset. A dedicated SPI port reads data from an external serial EEPROM to fully configure registers and RAM and optionally start execution for any of the terminal devices.



Features

  • Concurrent multi-terminal operation for BC and/or RT MIL-STD-1553B functions.
  • 8K x 17-bit words internal static RAM with parity.
  • Third Party RT Validated.
  • Autonomous terminal operation requires minimal host intervention.
  • 40 MHz SPI Host Interface.
  • MIL-STD-1760 option sets Busy bit in Status Word response during initialization.
  • World’s smallest MIL-STD-1553 terminal, QFN package measures just 6mm x 6mm.
  • Fully programmable Bus Controller with 28 op code instruction set.
  • Independent 16-bit time tag counters and clock sources for all modes. The Bus Controller also has 32- and 48-bit time count options.
  • 64-Word Interrupt Log Buffer queues the most recent 32 interrupts. Hardware-assisted interrupt decoding quickly identifies interrupt sources.
  • Built-in self-test for protocol logic, digital signal paths and internal RAM.
  • Optional self-initialization at reset uses external serial EEPROM
  • ±8kV ESD Protection (HBM, all pins).
  • Two temperature ranges: -40°C to +85°C, or -55°C to +125°C with optional burn-in.
  • RoHS compliant and Tin / Lead options available.



Applications

  • MIL-STD-1553 Terminals
  • Flight Control and Monitoring
  • Stores Management
  • Sensor Interfaces
  • Test Equipment
  • Instrumentation



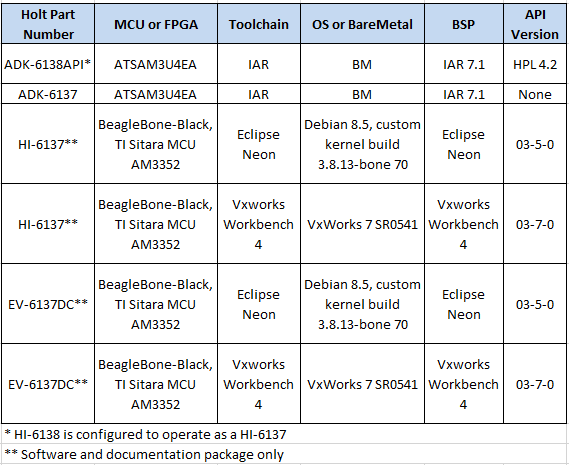

Loading...
ADK-6138API: MAMBA Family (HI-6138, HI-6137, HI-6136 and HI-6135) API Application Development Kit

ADK-6138API: MAMBA Family (HI-6138, HI-6137, HI-6136 and HI-6135) API Application Development Kit

The MAMBA Family API Application Development Kit (ADK-6138API) demonstrates the broad feature set of Holt’s high level MIL-STD-1553 API library when used with the MAMBA family of MIL-STD-1553 protocol devices (HI-6138, HI-6137, HI-6136 and HI-6135). The 2-board assembly and C project reference design provides a ready-to-run evaluation platform demonstrating concurrent operation for any combination of Bus Controller, Bus Monitor and Remote Terminal.
More Information

ADK-6137: MAMBA Family HI-6137 Application Development Kit

ADK-6137: MAMBA Family HI-6137 Application Development Kit

The MAMBA Family HI-6137 Application Development Kit (ADK-6137) demonstrates the broad feature set of the HI-6137 MIL-STD-1553 multi-terminal IC. The 2-board assembly and C project reference design provides a ready-to-run evaluation platform demonstrating concurrent operation for any combination of Bus Controller and Remote Terminal.
