HI-6131

The 3.3V CMOS HI-613x device provides a complete single- or multi-function interface between a host processor and MIL-STD-1553B bus. Each IC contains a Bus Controller (BC), a Bus Monitor Terminal (MT) and two independent Remote Terminals (RTs). Any combination of the contained 1553 functions can be enabled for concurrent operation. The enabled terminals communicate with the MIL-STD-1553 buses through a shared on-chip dual bus transceiver and external transformer. The user allocates 64K bytes of on-chip static RAM between devices to suit application requirements.

Two options are offered for host access to internal registers and static RAM:

  • The HI-6130 uses a 16-bit parallel bus
  • The HI-6131 communicates with the host via a 4-wire serial peripheral interface (SPI).

Package options vary, based on host interface I/O pin count.

Programmable interrupts provide terminal status to the host processor. Circular data stacks in RAM have rollover and programmable “level attained” interrupts. The HI- 613x can be configured for automatic self-initialization after reset. A dedicated SPI port reads data from an external serial EEPROM to fully configure registers and RAM for any subset of one to four terminal devices.



Features

  • Concurrent multi-terminal operation for one to four MIL-STD-1553B functions: BC, MT and two independent RTs.
  • Third Party RT Validated.
  • Two host interface options: 16-bit parallel bus for speed, or 4-wire SPI for smaller footprint and interconnect wiring reduction.
  • 64K bytes internal static RAM.
  • Autonomous terminal operation requires minimal host intervention.
  • Shared 1553 bus interface reduces circuit complexity and circuit board area.
  • Fully programmable Bus Controller with 28 op code instruction set.
  • Bus Monitor can operate in dual-stack mode, recording commands and data separately, with 16-bit or 48-bit time tagging.
  • Bus Monitor can record commands and data in single-stack mode, using IRIG-106 Chapter 10 “packet body” format.
  • Single-stack Bus Monitor and can optionally generate complete IRIG-106 data packets, including full packet headers and trailers.
  • Independent 16-bit time tag counters and clock sources for all terminals. The Bus Controller and Monitor also have 32- and 48-bit time count options, respectively.
  • 64-Word Interrupt Log Buffer queues the most recent 32 interrupts. Hardware-assisted interrupt decoding quickly identifies interrupt sources.
  • RAM Error Detection/Correction option
  • Built-in self-test for protocol logic, digital signal paths and internal RAM.
  • Optional self-initialization at reset uses external serial EEPROM
  • ±8kV ESD Protection (HBM, all pins).
  • Two temperature ranges: -40°C to +85°C, or -55°C to +125°C with optional burn-in.
  • RoHS compliant lead-free option.



Applications

  • MIL-STD-1553 Terminals
  • Flight Control and Monitoring
  • ECCM Interfaces
  • Stores Management
  • Sensor Interfaces
  • Test Equipment
  • Instrumentation



Loading...

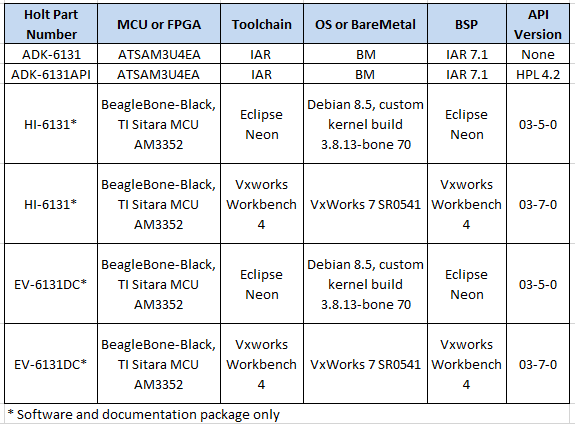

ADK-6131API: HI-6131 Application Development Kit with API Library

ADK-6131API: HI-6131 Application Development Kit with API Library

The Holt ADK-6131API Application Development Kit demonstrates the broad feature set of the HI-6131 Multi Terminal IC with SPI Host Interface for MIL-STD-1553. The 2-board assembly and C project software reference design provide a ready-to-run evaluation platform demonstrating concurrent operation for any combination of Bus Controller, Bus Monitor and one or two Remote Terminals. For convenience, this kit includes IAR Systems Embedded Workbench® for ARM, and a fully integrated debug interface for the ARM Cortex M3 microcontroller. Holt's Application Programming Interface (API) high-level software library is included on the CD.
More Information

ADK-6131: HI-6131 Application Development Kit

ADK-6131: HI-6131 Application Development Kit

The Holt HI-6131 Application Development Kit demonstrates the broad feature set of the HI-6131 Multi Terminal IC with SPI Host Interface for MIL-STD-1553. The 2-board assembly and C project reference design provides a ready-to-run evaluation platform demonstrating concurrent operation for any combination of Bus Controller, Bus Monitor and one or two Remote Terminals.
